GEOS
Public Types | Public Member Functions | Protected Attributes | List of all members
geos::multiscale::MsrsbLevelBuilderBase< LAI > Class Template Referenceabstract

Base class for MsRSB level builders. More...

#include <MsrsbLevelBuilderBase.hpp>

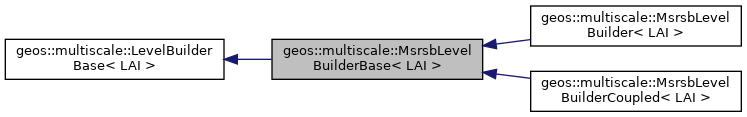

Inheritance diagram for geos::multiscale::MsrsbLevelBuilderBase< LAI >:
Inheritance graph
[legend]

Public Types

using Base = LevelBuilderBase< LAI >
 Alias for base type.

using Vector = typename Base::Vector
 Alias for vector type.

using Matrix = typename Base::Matrix
 Alias for matrix type.

using Operator = typename Base::Operator
 Alias for operator type.

- Public Types inherited from geos::multiscale::LevelBuilderBase< LAI >
using Vector = typename LAI::ParallelVector
 Alias for vector type.

using Matrix = typename LAI::ParallelMatrix
 Alias for matrix type.

using Operator = LinearOperator< Vector >
 Alias for operator type.


Public Member Functions

 MsrsbLevelBuilderBase (string name, LinearSolverParameters params)
 Constructor. More...

virtual Matrix const & prolongation () const override

virtual Operator const & restriction () const override

virtual Matrix const & matrix () const override

virtual PreconditionerBase< LAI > const * presmoother () const override

PreconditionerBase< LAI > * presmoother ()

virtual PreconditionerBase< LAI > const * postsmoother () const override

PreconditionerBase< LAI > * postsmoother ()

multiscale::DofManagerdofManager ()

multiscale::DofManager const & dofManager () const

virtual void compute (Matrix const &fineMatrix) override
 Compute the current level. More...

virtual bool updateProlongation (Matrix const &fineMatrix)=0
 Update current level's prolongation using a new previous level matrix. More...

- Public Member Functions inherited from geos::multiscale::LevelBuilderBase< LAI >
 LevelBuilderBase (string name, LinearSolverParameters params)
 Constructor. More...

virtual ~LevelBuilderBase ()=default
 Destructor.

virtual void initializeFineLevel (DomainPartition &domain, geos::DofManager const &dofManager, MPI_Comm const &comm)=0
 Initialize the finest level (level 0). More...

virtual void initializeCoarseLevel (LevelBuilderBase< LAI > &fineLevel, Matrix const &fineMatrix)=0
 Initialize a coarse level (levels 1 and above). More...

virtual std::unique_ptr< PreconditionerBase< LAI > > makeCoarseSolver () const =0
 Instantiate coarsest level solver. More...


Protected Attributes

MsrsbLevelBuilderBase const * m_fineLevel {}
 Pointer to the fine level.

Matrix m_prolongation
 Prolongation matrix P.

std::unique_ptr< Operatorm_restriction
 Restriction (kept as abstract operator to allow for memory efficiency, e.g. when R = P^T)

Matrix m_matrix
 Level operator matrix.

multiscale::DofManager m_dofManager
 DofManager for the matrix.

std::unique_ptr< PreconditionerBase< LAI > > m_preSmoother
 Pre-smoothing operator.

std::unique_ptr< PreconditionerBase< LAI > > m_postSmoother
 Post-smoothing operator.

LinearSolverParameters m_params
 Linear solver top-level parameters.

string m_name
 Level name (label)

- Protected Attributes inherited from geos::multiscale::LevelBuilderBase< LAI >
string m_name
 Level name (label)

LinearSolverParameters m_params
 Linear solver top-level parameters.


Additional Inherited Members

- Static Public Member Functions inherited from geos::multiscale::LevelBuilderBase< LAI >
static std::unique_ptr< LevelBuilderBase< LAI > > create (string name, LinearSolverParameters params)
 Factory interface to create level instances. More...


Detailed Description

template<typename LAI>
class geos::multiscale::MsrsbLevelBuilderBase< LAI >

Base class for MsRSB level builders.

Template Parameters
LAIlinear algebra interface type

Definition at line 37 of file MsrsbLevelBuilderBase.hpp.

Constructor & Destructor Documentation

◆ MsrsbLevelBuilderBase()

template<typename LAI >
geos::multiscale::MsrsbLevelBuilderBase< LAI >::MsrsbLevelBuilderBase ( string  name,
LinearSolverParameters  params
)
explicit

Constructor.

Parameters
namelevel name
paramslinear solver parameters

Member Function Documentation

◆ compute()

template<typename LAI >
virtual void geos::multiscale::MsrsbLevelBuilderBase< LAI >::compute ( Matrix const &  fineMatrix)
overridevirtual

Compute the current level.

Parameters
fineMatrixthe previous (fine) level system matrix

Implements geos::multiscale::LevelBuilderBase< LAI >.

◆ dofManager() [1/2]

template<typename LAI >
multiscale::DofManager& geos::multiscale::MsrsbLevelBuilderBase< LAI >::dofManager ( )
inline
Returns
the level's multiscale DofManager

Definition at line 104 of file MsrsbLevelBuilderBase.hpp.

◆ dofManager() [2/2]

template<typename LAI >
multiscale::DofManager const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::dofManager ( ) const
inline
Returns
the level's multiscale DofManager

Definition at line 109 of file MsrsbLevelBuilderBase.hpp.

◆ matrix()

template<typename LAI >
virtual Matrix const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::matrix ( ) const
inlineoverridevirtual
Returns
current level's system matrix

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 70 of file MsrsbLevelBuilderBase.hpp.

◆ postsmoother() [1/2]

template<typename LAI >
PreconditionerBase< LAI >* geos::multiscale::MsrsbLevelBuilderBase< LAI >::postsmoother ( )
inline
Returns
current level's post-smoothing operator (mutable access)

Definition at line 96 of file MsrsbLevelBuilderBase.hpp.

◆ postsmoother() [2/2]

template<typename LAI >
virtual PreconditionerBase< LAI > const* geos::multiscale::MsrsbLevelBuilderBase< LAI >::postsmoother ( ) const
inlineoverridevirtual
Returns
current level's post-smoothing operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 88 of file MsrsbLevelBuilderBase.hpp.

◆ presmoother() [1/2]

template<typename LAI >
PreconditionerBase< LAI >* geos::multiscale::MsrsbLevelBuilderBase< LAI >::presmoother ( )
inline
Returns
current level's pre-smoothing operator (mutable access)

Definition at line 83 of file MsrsbLevelBuilderBase.hpp.

◆ presmoother() [2/2]

template<typename LAI >
virtual PreconditionerBase< LAI > const* geos::multiscale::MsrsbLevelBuilderBase< LAI >::presmoother ( ) const
inlineoverridevirtual
Returns
current level's pre-smoothing operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 75 of file MsrsbLevelBuilderBase.hpp.

◆ prolongation()

template<typename LAI >
virtual Matrix const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::prolongation ( ) const
inlineoverridevirtual
Returns
current level's prolongation operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 60 of file MsrsbLevelBuilderBase.hpp.

◆ restriction()

template<typename LAI >
virtual Operator const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::restriction ( ) const
inlineoverridevirtual
Returns
current level's restriction operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 65 of file MsrsbLevelBuilderBase.hpp.

◆ updateProlongation()

template<typename LAI >
virtual bool geos::multiscale::MsrsbLevelBuilderBase< LAI >::updateProlongation ( Matrix const &  fineMatrix)
pure virtual

Update current level's prolongation using a new previous level matrix.

Parameters
fineMatrixthe previous level matrix
Returns
whether an update was actually performed (it may not be when the change is below threshold)

Implemented in geos::multiscale::MsrsbLevelBuilderCoupled< LAI >, and geos::multiscale::MsrsbLevelBuilder< LAI >.


The documentation for this class was generated from the following file:
