Base class for level builder implementations. More...

#include <LevelBuilderBase.hpp>

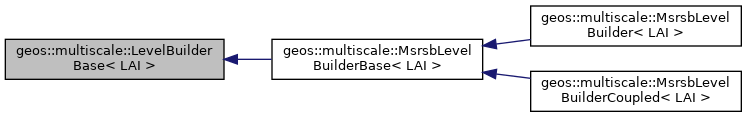

Inheritance diagram for geos::multiscale::LevelBuilderBase< LAI >:

[legend]

Public Types
using	Vector = typename LAI::ParallelVector
	Alias for vector type.

using	Matrix = typename LAI::ParallelMatrix
	Alias for matrix type.

using	Operator = LinearOperator< Vector >
	Alias for operator type.

Public Member Functions
	LevelBuilderBase (string name, LinearSolverParameters params)
	Constructor. More...

virtual	~LevelBuilderBase ()=default
	Destructor.

virtual Operator const &	prolongation () const =0

virtual Operator const &	restriction () const =0

virtual Matrix const &	matrix () const =0

virtual Operator const *	presmoother () const =0

virtual Operator const *	postsmoother () const =0

virtual void	initializeFineLevel (DomainPartition &domain, geos::DofManager const &dofManager, MPI_Comm const &comm)=0
	Initialize the finest level (level 0). More...

virtual void	initializeCoarseLevel (LevelBuilderBase< LAI > &fineLevel, Matrix const &fineMatrix)=0
	Initialize a coarse level (levels 1 and above). More...

virtual void	compute (Matrix const &fineMatrix)=0
	Compute the current level. More...

virtual std::unique_ptr< PreconditionerBase< LAI > >	makeCoarseSolver () const =0
	Instantiate coarsest level solver. More...

Static Public Member Functions
static std::unique_ptr< LevelBuilderBase< LAI > >	create (string name, LinearSolverParameters params)
	Factory interface to create level instances. More...

Protected Attributes
string	m_name
	Level name (label)

LinearSolverParameters	m_params
	Linear solver top-level parameters.

Detailed Description

template<typename LAI>
class geos::multiscale::LevelBuilderBase< LAI >

Base class for level builder implementations.

Template Parameters

LAI	linear algebra interface type

Definition at line 41 of file LevelBuilderBase.hpp.

Constructor & Destructor Documentation

◆ LevelBuilderBase()

template<typename LAI >

geos::multiscale::LevelBuilderBase< LAI >::LevelBuilderBase	(	string	name,
		LinearSolverParameters	params
	)

explicit

Constructor.

Parameters

name	level name
params	solver parameters (levels may need access to the full set of them)

Member Function Documentation

◆ compute()

template<typename LAI >

virtual void geos::multiscale::LevelBuilderBase< LAI >::compute ( Matrix const & fineMatrix )

pure virtual

Compute the current level.

Parameters

fineMatrix the previous (fine) level system matrix

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

◆ create()

template<typename LAI >

static std::unique_ptr< LevelBuilderBase< LAI > > geos::multiscale::LevelBuilderBase< LAI >::create	(	string	name,
		LinearSolverParameters	params
	)

static

Factory interface to create level instances.

Parameters

name	level name
params	solver parameters

Returns: owning pointer to the level instance

◆ initializeCoarseLevel()

template<typename LAI >

virtual void geos::multiscale::LevelBuilderBase< LAI >::initializeCoarseLevel	(	LevelBuilderBase< LAI > &	fineLevel,
		Matrix const &	fineMatrix
	)

pure virtual

Initialize a coarse level (levels 1 and above).

Parameters

fineLevel	the previous (fine) level
fineMatrix	the previous (fine) level system matrix

Implemented in geos::multiscale::MsrsbLevelBuilderCoupled< LAI >, and geos::multiscale::MsrsbLevelBuilder< LAI >.

◆ initializeFineLevel()

template<typename LAI >

virtual void geos::multiscale::LevelBuilderBase< LAI >::initializeFineLevel	(	DomainPartition &	domain,
		geos::DofManager const &	dofManager,
		MPI_Comm const &	comm
	)

pure virtual

Initialize the finest level (level 0).

Parameters

domain	the physical domain object
dofManager	the source DofManager
comm	MPI communicator

Implemented in geos::multiscale::MsrsbLevelBuilderCoupled< LAI >, and geos::multiscale::MsrsbLevelBuilder< LAI >.

◆ makeCoarseSolver()

template<typename LAI >

virtual std::unique_ptr< PreconditionerBase< LAI > > geos::multiscale::LevelBuilderBase< LAI >::makeCoarseSolver ( ) const

pure virtual

Instantiate coarsest level solver.

Returns: owning pointer to the solver

Implemented in geos::multiscale::MsrsbLevelBuilderCoupled< LAI >, and geos::multiscale::MsrsbLevelBuilder< LAI >.

◆ matrix()

template<typename LAI >

virtual Matrix const& geos::multiscale::LevelBuilderBase< LAI >::matrix ( ) const

pure virtual

Returns: current level's system matrix

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

◆ postsmoother()

template<typename LAI >

virtual Operator const* geos::multiscale::LevelBuilderBase< LAI >::postsmoother ( ) const

pure virtual

Returns: current level's post-smoothing operator

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

◆ presmoother()

template<typename LAI >

virtual Operator const* geos::multiscale::LevelBuilderBase< LAI >::presmoother ( ) const

pure virtual

Returns: current level's pre-smoothing operator

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

◆ prolongation()

template<typename LAI >

virtual Operator const& geos::multiscale::LevelBuilderBase< LAI >::prolongation ( ) const

pure virtual

Returns: current level's prolongation operator

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

◆ restriction()

template<typename LAI >

virtual Operator const& geos::multiscale::LevelBuilderBase< LAI >::restriction ( ) const

pure virtual

Returns: current level's restriction operator

Implemented in geos::multiscale::MsrsbLevelBuilderBase< LAI >.

The documentation for this class was generated from the following file:

coreComponents/linearAlgebra/multiscale/LevelBuilderBase.hpp
