Base class for MsRSB level builders. More...

#include <MsrsbLevelBuilderBase.hpp>

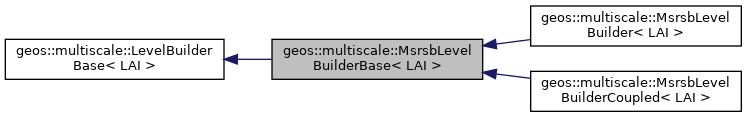

Inheritance diagram for geos::multiscale::MsrsbLevelBuilderBase< LAI >:

[legend]

Public Types
using	Base = LevelBuilderBase< LAI >
	Alias for base type.

using	Vector = typename Base::Vector
	Alias for vector type.

using	Matrix = typename Base::Matrix
	Alias for matrix type.

using	Operator = typename Base::Operator
	Alias for operator type.

Public Types inherited from geos::multiscale::LevelBuilderBase< LAI >
using	Vector = typename LAI::ParallelVector
	Alias for vector type.

using	Matrix = typename LAI::ParallelMatrix
	Alias for matrix type.

using	Operator = LinearOperator< Vector >
	Alias for operator type.

Public Member Functions
	MsrsbLevelBuilderBase (string name, LinearSolverParameters params)
	Constructor. More...

virtual Matrix const &	prolongation () const override

virtual Operator const &	restriction () const override

virtual Matrix const &	matrix () const override

virtual PreconditionerBase< LAI > const *	presmoother () const override

PreconditionerBase< LAI > *	presmoother ()

virtual PreconditionerBase< LAI > const *	postsmoother () const override

PreconditionerBase< LAI > *	postsmoother ()

multiscale::DofManager &	dofManager ()

multiscale::DofManager const &	dofManager () const

virtual void	compute (Matrix const &fineMatrix) override
	Compute the current level. More...

virtual bool	updateProlongation (Matrix const &fineMatrix)=0
	Update current level's prolongation using a new previous level matrix. More...

Public Member Functions inherited from geos::multiscale::LevelBuilderBase< LAI >
	LevelBuilderBase (string name, LinearSolverParameters params)
	Constructor. More...

virtual	~LevelBuilderBase ()=default
	Destructor.

virtual void	initializeFineLevel (DomainPartition &domain, geos::DofManager const &dofManager, MPI_Comm const &comm)=0
	Initialize the finest level (level 0). More...

virtual void	initializeCoarseLevel (LevelBuilderBase< LAI > &fineLevel, Matrix const &fineMatrix)=0
	Initialize a coarse level (levels 1 and above). More...

virtual std::unique_ptr< PreconditionerBase< LAI > >	makeCoarseSolver () const =0
	Instantiate coarsest level solver. More...

Protected Attributes
MsrsbLevelBuilderBase const *	m_fineLevel {}
	Pointer to the fine level.

Matrix	m_prolongation
	Prolongation matrix P.

std::unique_ptr< Operator >	m_restriction
	Restriction (kept as abstract operator to allow for memory efficiency, e.g. when R = P^T)

Matrix	m_matrix
	Level operator matrix.

multiscale::DofManager	m_dofManager
	DofManager for the matrix.

std::unique_ptr< PreconditionerBase< LAI > >	m_preSmoother
	Pre-smoothing operator.

std::unique_ptr< PreconditionerBase< LAI > >	m_postSmoother
	Post-smoothing operator.

LinearSolverParameters	m_params
	Linear solver top-level parameters.

string	m_name
	Level name (label)

Protected Attributes inherited from geos::multiscale::LevelBuilderBase< LAI >
string	m_name
	Level name (label)

LinearSolverParameters	m_params
	Linear solver top-level parameters.

Additional Inherited Members
Static Public Member Functions inherited from geos::multiscale::LevelBuilderBase< LAI >
static std::unique_ptr< LevelBuilderBase< LAI > >	create (string name, LinearSolverParameters params)
	Factory interface to create level instances. More...

Detailed Description

template<typename LAI>
class geos::multiscale::MsrsbLevelBuilderBase< LAI >

Base class for MsRSB level builders.

Template Parameters

LAI	linear algebra interface type

Definition at line 37 of file MsrsbLevelBuilderBase.hpp.

Constructor & Destructor Documentation

◆ MsrsbLevelBuilderBase()

template<typename LAI >

geos::multiscale::MsrsbLevelBuilderBase< LAI >::MsrsbLevelBuilderBase	(	string	name,
		LinearSolverParameters	params
	)

explicit

Constructor.

Parameters

name	level name
params	linear solver parameters

Member Function Documentation

◆ compute()

template<typename LAI >

virtual void geos::multiscale::MsrsbLevelBuilderBase< LAI >::compute ( Matrix const & fineMatrix )

overridevirtual

Compute the current level.

Parameters

fineMatrix the previous (fine) level system matrix

Implements geos::multiscale::LevelBuilderBase< LAI >.

◆ dofManager() [1/2]

template<typename LAI >

multiscale::DofManager& geos::multiscale::MsrsbLevelBuilderBase< LAI >::dofManager ( )

inline

Returns: the level's multiscale DofManager

Definition at line 104 of file MsrsbLevelBuilderBase.hpp.

◆ dofManager() [2/2]

template<typename LAI >

multiscale::DofManager const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::dofManager ( ) const

inline

Returns: the level's multiscale DofManager

Definition at line 109 of file MsrsbLevelBuilderBase.hpp.

◆ matrix()

template<typename LAI >

virtual Matrix const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::matrix ( ) const

inlineoverridevirtual

Returns: current level's system matrix

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 70 of file MsrsbLevelBuilderBase.hpp.

◆ postsmoother() [1/2]

template<typename LAI >

PreconditionerBase< LAI >* geos::multiscale::MsrsbLevelBuilderBase< LAI >::postsmoother ( )

inline

Returns: current level's post-smoothing operator (mutable access)

Definition at line 96 of file MsrsbLevelBuilderBase.hpp.

◆ postsmoother() [2/2]

template<typename LAI >

virtual PreconditionerBase< LAI > const* geos::multiscale::MsrsbLevelBuilderBase< LAI >::postsmoother ( ) const

inlineoverridevirtual

Returns: current level's post-smoothing operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 88 of file MsrsbLevelBuilderBase.hpp.

◆ presmoother() [1/2]

template<typename LAI >

PreconditionerBase< LAI >* geos::multiscale::MsrsbLevelBuilderBase< LAI >::presmoother ( )

inline

Returns: current level's pre-smoothing operator (mutable access)

Definition at line 83 of file MsrsbLevelBuilderBase.hpp.

◆ presmoother() [2/2]

template<typename LAI >

virtual PreconditionerBase< LAI > const* geos::multiscale::MsrsbLevelBuilderBase< LAI >::presmoother ( ) const

inlineoverridevirtual

Returns: current level's pre-smoothing operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 75 of file MsrsbLevelBuilderBase.hpp.

◆ prolongation()

template<typename LAI >

virtual Matrix const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::prolongation ( ) const

inlineoverridevirtual

Returns: current level's prolongation operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 60 of file MsrsbLevelBuilderBase.hpp.

◆ restriction()

template<typename LAI >

virtual Operator const& geos::multiscale::MsrsbLevelBuilderBase< LAI >::restriction ( ) const

inlineoverridevirtual

Returns: current level's restriction operator

Implements geos::multiscale::LevelBuilderBase< LAI >.

Definition at line 65 of file MsrsbLevelBuilderBase.hpp.

◆ updateProlongation()

template<typename LAI >

virtual bool geos::multiscale::MsrsbLevelBuilderBase< LAI >::updateProlongation ( Matrix const & fineMatrix )

pure virtual

Update current level's prolongation using a new previous level matrix.

Parameters

fineMatrix the previous level matrix

Returns: whether an update was actually performed (it may not be when the change is below threshold)

Implemented in geos::multiscale::MsrsbLevelBuilderCoupled< LAI >, and geos::multiscale::MsrsbLevelBuilder< LAI >.

The documentation for this class was generated from the following file:

coreComponents/linearAlgebra/multiscale/msrsb/MsrsbLevelBuilderBase.hpp
