geos::finiteElement::InterfaceKernelBase< CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP > Class Template Reference

Define the base class for interface finite element kernels. (2D finite elements belong to FaceElementSubRegion). More...

#include <InterfaceKernelBase.hpp>

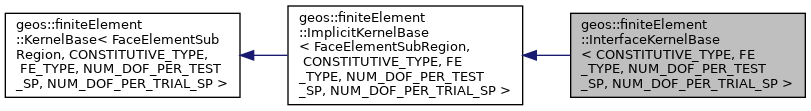

Inheritance diagram for geos::finiteElement::InterfaceKernelBase< CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >:

Classes
struct	StackVariables
	Kernel variables allocated on the stack. More...

Public Types
using	Base = ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
	Alias for the base class, i.e., geos::finiteElement::ImplicitKernelBase)
Public Types inherited from geos::finiteElement::ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
using	Base = KernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
	Alias for the base class. (i.e. geos::finiteElement::KernelBase)

Public Member Functions
	InterfaceKernelBase (NodeManager const &nodeManager, EdgeManager const &edgeManager, FaceManager const &faceManager, localIndex const targetRegionIndex, FaceElementSubRegion &elementSubRegion, FE_TYPE const &finiteElementSpace, CONSTITUTIVE_TYPE &inputConstitutiveType, arrayView1d< globalIndex const > const inputDofNumber, globalIndex const rankOffset, CRSMatrixView< real64, globalIndex const > const inputMatrix, arrayView1d< real64 > const inputRhs, real64 const inputDt)
	Constructor. More...
Public Member Functions inherited from geos::finiteElement::ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
	ImplicitKernelBase (NodeManager const &nodeManager, EdgeManager const &edgeManager, FaceManager const &faceManager, localIndex const targetRegionIndex, FaceElementSubRegion const &elementSubRegion, FE_TYPE const &finiteElementSpace, CONSTITUTIVE_TYPE &inputConstitutiveType, arrayView1d< globalIndex const > const &inputDofNumber, globalIndex const rankOffset, CRSMatrixView< real64, globalIndex const > const &inputMatrix, arrayView1d< real64 > const &inputRhs, real64 const inputDt)
	Constructor. More...
GEOS_HOST_DEVICE void	setup (localIndex const k, StackVariables &stack) const
	Performs the setup phase for the kernel. More...
Public Member Functions inherited from geos::finiteElement::KernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
	KernelBase (FaceElementSubRegion const &elementSubRegion, FE_TYPE const &finiteElementSpace, CONSTITUTIVE_TYPE &inputConstitutiveType)
	Constructor. More...
GEOS_HOST_DEVICE void	setup (localIndex const k, StackVariables &stack) const
	Performs the setup phase for the kernel. More...
GEOS_HOST_DEVICE GEOS_FORCE_INLINE void	quadraturePointKernel (localIndex const k, localIndex const q, StackVariables &stack) const
	Performs a state update at a quadrature point. More...
GEOS_HOST_DEVICE real64	complete (localIndex const k, StackVariables &stack) const
	Performs the complete phase for the kernel. More...

Additional Inherited Members
Static Public Member Functions inherited from geos::finiteElement::KernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
static real64	kernelLaunch (localIndex const numElems, KERNEL_TYPE const &kernelComponent)
	Kernel Launcher. More...
Public Attributes inherited from geos::finiteElement::ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
traits::ViewTypeConst< typename SUBREGION_TYPE::NodeMapType::base_type > const	m_elemsToNodes
	The element to nodes map.
FE_TYPE const	m_finiteElementSpace
Static Public Attributes inherited from geos::finiteElement::ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
static constexpr int	maxNumTestSupportPointsPerElem
static constexpr int	maxNumTrialSupportPointsPerElem
static constexpr int	numDofPerTestSupportPoint
static constexpr int	numDofPerTrialSupportPoint
Static Public Attributes inherited from geos::finiteElement::KernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
static constexpr int	maxNumTestSupportPointsPerElem
static constexpr int	maxNumTrialSupportPointsPerElem
static constexpr int	numDofPerTestSupportPoint
static constexpr int	numDofPerTrialSupportPoint
static constexpr int	numQuadraturePointsPerElem
	Compile time value for the number of quadrature points per element.
Protected Attributes inherited from geos::finiteElement::ImplicitKernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
arrayView1d< globalIndex const > const	m_dofNumber
	The global degree of freedom number.
globalIndex const	m_dofRankOffset
	The global rank offset.
CRSMatrixView< real64, globalIndex const > const	m_matrix
	The global Jacobian matrix.
arrayView1d< real64 > const	m_rhs
	The global residaul vector.
FE_TYPE::template MeshData< FaceElementSubRegion >	m_meshData
	Data structure containing mesh data used to setup the finite element.
real64 const	m_dt
	time increment
Protected Attributes inherited from geos::finiteElement::KernelBase< FaceElementSubRegion, CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >
traits::ViewTypeConst< typename SUBREGION_TYPE::NodeMapType::base_type > const	m_elemsToNodes
	The element to nodes map.
arrayView1d< integer const > const	m_elemGhostRank
	The element ghost rank array.
CONSTITUTIVE_TYPE::KernelWrapper const	m_constitutiveUpdate
FE_TYPE const	m_finiteElementSpace

Detailed Description

template<typename CONSTITUTIVE_TYPE, typename FE_TYPE, int NUM_DOF_PER_TEST_SP, int NUM_DOF_PER_TRIAL_SP>
class geos::finiteElement::InterfaceKernelBase< CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >

Define the base class for interface finite element kernels. (2D finite elements belong to FaceElementSubRegion).

Template Parameters

CONSTITUTIVE_TYPE	The type of constitutive model present in the FaceElementSubRegion.
FE_TYPE	The type of finite element.
NUM_DOF_PER_TEST_SP	The number of DOF per test support point.
NUM_DOF_PER_TRIAL_SP	The number of DOF per trial support point.

Definition at line 58 of file InterfaceKernelBase.hpp.

Constructor & Destructor Documentation

InterfaceKernelBase()

template<typename CONSTITUTIVE_TYPE , typename FE_TYPE , int NUM_DOF_PER_TEST_SP, int NUM_DOF_PER_TRIAL_SP>

geos::finiteElement::InterfaceKernelBase< CONSTITUTIVE_TYPE, FE_TYPE, NUM_DOF_PER_TEST_SP, NUM_DOF_PER_TRIAL_SP >::InterfaceKernelBase ( NodeManager const &  nodeManager, EdgeManager const &  edgeManager, FaceManager const &  faceManager, localIndex const  targetRegionIndex, FaceElementSubRegion &  elementSubRegion, FE_TYPE const &  finiteElementSpace, CONSTITUTIVE_TYPE &  inputConstitutiveType, arrayView1d< globalIndex const > const  inputDofNumber, globalIndex const  rankOffset, CRSMatrixView< real64, globalIndex const > const  inputMatrix, arrayView1d< real64 > const  inputRhs, real64 const  inputDt  )

inline

Constructor.

Constructor.

Parameters

nodeManager	Reference to the NodeManager object.
edgeManager	Reference to the EdgeManager object.
faceManager	Reference to the FaceManager object.
targetRegionIndex	Index of the region the subregion belongs to.
inputDofNumber	The dof number for the primary field.
rankOffset	dof index offset of current rank
inputMatrix	Reference to the Jacobian matrix.
inputRhs	Reference to the RHS vector.
inputDt	The timestep for the physics update.

Constructor.

Parameters

elementSubRegion	Reference to the SUBREGION_TYPE(class template parameter) object.
inputConstitutiveType	The constitutive object.
finiteElementSpace	Placeholder for the finite element space object, which currently doesn't do much.

Definition at line 81 of file InterfaceKernelBase.hpp.

---

The documentation for this class was generated from the following file:

• coreComponents/finiteElement/kernelInterface/InterfaceKernelBase.hpp
