Linear solver adapter that routes GEOS Hypre systems through hypredrive. More...

#include <hypredrive.hpp>

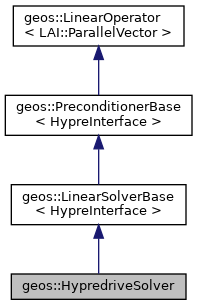

Inheritance diagram for geos::HypredriveSolver:

[legend]

Public Types
using	Base = LinearSolverBase< HypreInterface >
	Alias for the common linear-solver base implementation.

Public Types inherited from geos::LinearSolverBase< HypreInterface >
using	Base = PreconditionerBase< HypreInterface >
	Alias for base type.

using	Vector = typename Base::Vector
	Alias for vector type.

using	Matrix = typename Base::Matrix
	Alias for matrix type.

Public Types inherited from geos::PreconditionerBase< HypreInterface >
using	Base = LinearOperator< typename LAI::ParallelVector >
	Alias for base type.

using	Vector = typename Base::Vector
	Alias for vector type.

using	Matrix = typename LAI::ParallelMatrix
	Alias for matrix type.

Public Types inherited from geos::LinearOperator< LAI::ParallelVector >
using	Vector = LAI::ParallelVector
	Alias for template parameter.

Public Member Functions
	HypredriveSolver (LinearSolverParameters parameters)
	Construct a hypredrive-backed linear solver. More...

	~HypredriveSolver () override
	Destroys the managed hypredrive object and releases any fallback solver state.

void	setExecutionContext (LinearSolverExecutionContext const &context) override
	Update the execution metadata associated with subsequent solves. More...

void	setup (HypreMatrix const &mat) override
	Build or refresh the solver/preconditioner for a matrix. More...

void	apply (HypreVector const &src, HypreVector &dst) const override
	Apply the configured operator as a preconditioner action. More...

void	solve (HypreVector const &rhs, HypreVector &sol) const override
	Solve the linear system with hypredrive. More...

void	clear () override
	Reset solver-owned state and destroy any active hypredrive object.

Public Member Functions inherited from geos::LinearSolverBase< HypreInterface >
	LinearSolverBase (LinearSolverParameters params)
	Constructor. More...

virtual void	solve (Vector const &rhs, Vector &sol) const=0
	Solve preconditioned system. More...

LinearSolverParameters const &	parameters () const

LinearSolverResult const &	result () const

Public Member Functions inherited from geos::PreconditionerBase< HypreInterface >
virtual void	setup (Matrix const &mat)
	Compute the preconditioner from a matrix. More...

virtual globalIndex	numGlobalRows () const override
	Get the number of global rows. More...

virtual globalIndex	numGlobalCols () const override
	Get the number of global columns. More...

virtual localIndex	numLocalRows () const override
	Get the number of local rows. More...

virtual localIndex	numLocalCols () const override
	Get the number of local columns. More...

virtual MPI_Comm	comm () const override
	Get the MPI communicator the matrix was created with. More...

bool	ready () const
	Chech if preconditioner is ready to use. More...

Matrix const &	matrix () const
	Access the matrix the preconditioner was computed from. More...

virtual bool	hasPreconditionerMatrix () const
	Check whether the preconditioner is available in matrix (explicit) form. More...

virtual Matrix const &	preconditionerMatrix () const
	Access the preconditioner in matrix form (whenever available). It must be overridden by the specific preconditioner. More...

Public Member Functions inherited from geos::LinearOperator< LAI::ParallelVector >
	LinearOperator ()=default
	Constructor.

virtual	~LinearOperator ()=default
	Destructor.

virtual void	apply (Vector const &src, Vector &dst) const=0
	Apply operator to a vector, `dst = this(src)`. More...

virtual void	residual (Vector const &x, Vector const &b, Vector &r) const
	Compute residual `r = b - this(x)`. More...

virtual globalIndex	numGlobalNonzeros () const

virtual localIndex	numLocalNonzeros () const

Friends
class	HypredriveSolverTestPeer

Additional Inherited Members
Protected Attributes inherited from geos::LinearSolverBase< HypreInterface >
LinearSolverParameters	m_params
	Parameters for the solver.

LinearSolverResult	m_result
	Result of most recent solve (status, timings)

Detailed Description

Linear solver adapter that routes GEOS Hypre systems through hypredrive.

The solver owns a HYPREDRV_t handle when hypredrive is active and falls back to the legacy Hypre solver path when the requested configuration is unsupported.

Definition at line 79 of file hypredrive.hpp.

Constructor & Destructor Documentation

◆ HypredriveSolver()

geos::HypredriveSolver::HypredriveSolver ( LinearSolverParameters parameters )

explicit

Construct a hypredrive-backed linear solver.

Parameters

parameters GEOS linear-solver parameters used to configure hypredrive.

Member Function Documentation

◆ apply()

void geos::HypredriveSolver::apply	(	HypreVector const &	src,
		HypreVector &	dst
	)		const

override

Apply the configured operator as a preconditioner action.

Parameters

src	Input vector.
dst	Output vector receiving the operator application.

◆ setExecutionContext()

void geos::HypredriveSolver::setExecutionContext ( LinearSolverExecutionContext const & context )

overridevirtual

Update the execution metadata associated with subsequent solves.

Parameters

context Current solve context from the owning physics solver.

Reimplemented from geos::LinearSolverBase< HypreInterface >.

◆ setup()

void geos::HypredriveSolver::setup ( HypreMatrix const & mat )

override

Build or refresh the solver/preconditioner for a matrix.

Parameters

mat	Matrix that defines the system structure and coefficients.

◆ solve()

void geos::HypredriveSolver::solve	(	HypreVector const &	rhs,
		HypreVector &	sol
	)		const

override

Solve the linear system with hypredrive.

Parameters

rhs	Right-hand side vector.
sol	Input initial guess and output solution vector.

The documentation for this class was generated from the following file:

coreComponents/linearAlgebra/interfaces/hypre/hypredrive.hpp
