geos::multiscale::PartitionerBase Class Reference

Base class for partitioner implementations. More...

#include <PartitionerBase.hpp>

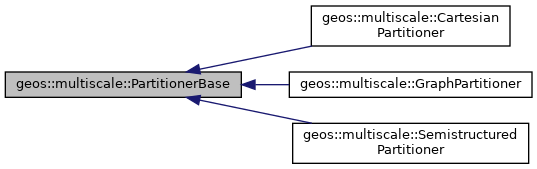

Inheritance diagram for geos::multiscale::PartitionerBase:

Public Member Functions
	PartitionerBase (LinearSolverParameters::Multiscale::Coarsening params)
	Constructor. More...
virtual	~PartitionerBase ()=default
	Destructor.
virtual localIndex	generate (multiscale::MeshLevel const &mesh, arrayView1d< localIndex > const &partition)=0
	Generate a partitioning of fine-scale mesh cells. More...
virtual void	setCoarseData (multiscale::MeshLevel &coarseMesh) const
	Store auxiliary partitioning-related data on the coarse mesh. More...

Static Public Member Functions
static std::unique_ptr< PartitionerBase >	create (LinearSolverParameters::Multiscale::Coarsening params)
	Factory method for instantiating a partitioner based on parameters. More...

Protected Attributes
LinearSolverParameters::Multiscale::Coarsening	m_params
	Coarsening parameters.

Detailed Description

Base class for partitioner implementations.

Definition at line 35 of file PartitionerBase.hpp.

Constructor & Destructor Documentation

PartitionerBase()

geos::multiscale::PartitionerBase::PartitionerBase ( LinearSolverParameters::Multiscale::Coarsening  params )

inlineexplicit

Constructor.

Parameters

params

coarsening parameters

Definition at line 51 of file PartitionerBase.hpp.

Member Function Documentation

create()

static std::unique_ptr< PartitionerBase > geos::multiscale::PartitionerBase::create ( LinearSolverParameters::Multiscale::Coarsening  params )

static

Factory method for instantiating a partitioner based on parameters.

Parameters

params

coarsening parameters

Returns

owning pointer to the new partitioner object

generate()

virtual localIndex geos::multiscale::PartitionerBase::generate ( multiscale::MeshLevel const &  mesh, arrayView1d< localIndex > const &  partition  )

pure virtual

Generate a partitioning of fine-scale mesh cells.

Parameters

mesh	the fine-scale mesh
partition	the partition index output array (that must be properly sized)

Returns

the number of partitions generated

Implemented in geos::multiscale::SemistructuredPartitioner, geos::multiscale::GraphPartitioner, and geos::multiscale::CartesianPartitioner.

setCoarseData()

virtual void geos::multiscale::PartitionerBase::setCoarseData ( multiscale::MeshLevel &  coarseMesh ) const

inlinevirtual

Store auxiliary partitioning-related data on the coarse mesh.

Parameters

coarseMesh

the coarse mesh

This function can be used to transfer auxiliary data used by the partitioner implementation onto the coarse grid after it's been created based on the previously generated partition. For example, a Cartesian partitioner may need to assign Cartesian indices to newly generated coarse cells, so that it can be later applied to the coarse grid recursively.

Note

It is expected that the coarse mesh contains exactly as many cells as there are unique partition indices produced by generate().

Reimplemented in geos::multiscale::SemistructuredPartitioner, and geos::multiscale::CartesianPartitioner.

Definition at line 81 of file PartitionerBase.hpp.

---

The documentation for this class was generated from the following file:

• coreComponents/linearAlgebra/multiscale/mesh/coarsening/PartitionerBase.hpp
